| Product Name： |

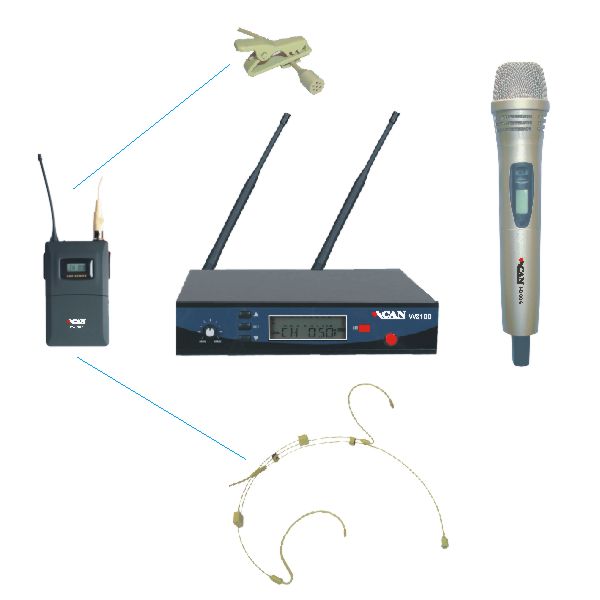

Wireless Microphone |
Item No.： |
W-3100 |
|
Display status:
LCD panel displays group.RF/AF signal indicators to identify.user can set channel/frequency/ mute ect
Frequency adjustment:a,b,c three channels designed.each channel has 100frequency for adjusting.
Channel: single-channel
Receiving mode:dual antenna-diversity
Oscillation mode:PLL synthesized
Stability:土0。005%（-10~40’c）
Carrier frequency range:uhf620-950MHz
Bandwidth:25MHz
OPERATING MODE:AUTO OPERATION
SENSITIVITY:12dBu v(s/n>80dB)
Max deviation range:土45KHz
S/N ratio :>105dB(A)
THD:<0.5%@1KHz
Frequency response:50Hz--18KHz土3dB
Max output level:balance MIC-LEVEL:-14dBV/100ohm
Unbalance MIC-LEVEL:-4dBv/5000ohm
Squelch innovative:’pilotone&noiselock’ dual -squelch circuit.
Squelch adjustment:adjust from front panel
DC power supply:DC11-16V
Dimension(M/M):215*40*180
Weight: about 2.2 KG |
|
|
 |
|
|
