| Product Name： |

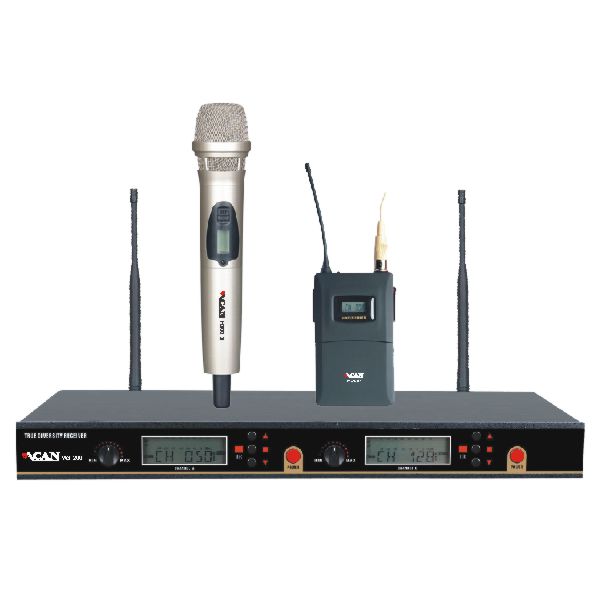

Wireless Microphone |
Item No.： |
W-3200 |
|
Rack:EIA STANDARD 1U
CHANNEL:DOUBLE-CHANNEL
HOUSING:metal cast
Display status:LCD panel displays group,RF/AF signal indicators to identify.
Auto message:user can set channel/frequency/mute build in antenna spliter etc.
Oscillation mode:pll synthesized
RF stability:土0.005%within
Carrier freequency range:UHF 620-950MHz
Bandwidth:50MHz
Channels:200ch
Channel setting:turn the up.down key.could auto scan and locked the preset channe
If press the key set.the transmitter would auto tracing and locked the channel.
Receiving mode:dual antenna-diversity
RF connecter:BNC/50 OHM
WORKING VOLTAGE:DC11-16V DC
SENSITIVITY:12dBu(s/n>80dB)
Max deviation range:土68KHz
S/n ratio:>105dB(IHF-A)
THD:<0.5%@1KHz
Audio output:unbalance:+4dB9(1.25V)/5kΩ
Balance:+10dB(2.5v)/600
Frequency response:60HZ-18000Hz 土3dB (build in low cut circuit)
Output connecter:XLR OR 6.3JACK PLUG
Dimension(M/M):420*44*180
Weight:3.0KG |
|
|
 |
|
|
