| Product Name： |

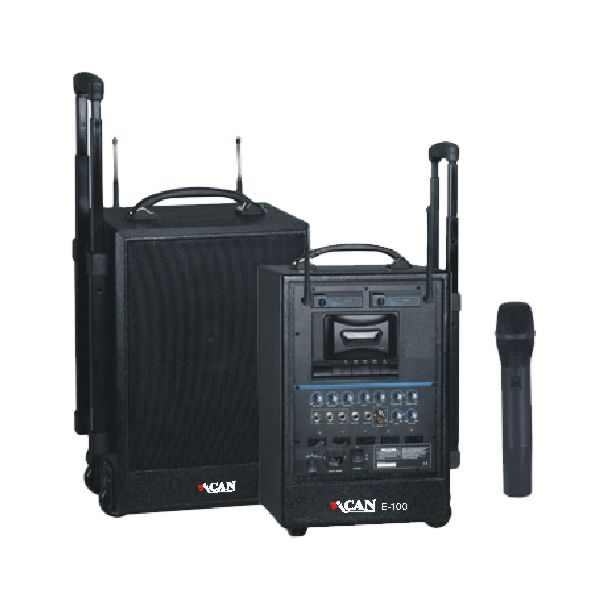

Public loudspeaker microphone |
Item No.： |
E-100 |
|
Transmitter
Carrier Frequency Range:VHF160-280 MHz
Frequency Stability:±0.005%
RF Output Power:≤30mW
Spurious Rejection:>40dB
Modulation Mode:FM
Maximum Deviation Range:±75KHz
Microphone Mode：Dynamic
Pre-Emphasis:50μS
Power Supply:9V Batt
Current Consumption:<30mA
Receiver
Carrier Frequency: VHF 160-280MHz
Border Upon Channel Rejection: >80dB
Frequency Stability: ±0.005%
Image Disturbing Rate: >80dB
Dynamic Range: >90dB
Emission Power: 30mW
System
Dynamic Range:≥60dB
System Distortion:≤1%
Signal-to-Noise Ratio:≥60dB
Operating Range:apr.50m
Operating Temperatue Range:5℃-4.5℃
Audio Frequency Output: Independent: 0-±400mV Mixed: 0-±300mV
Frequency Response: 40-16KHz±3dB
Receiver Power Supply: AC220V/50-60Hz
S/N Ratio: >98dB
Function Distance: 80M
Standard：FCC,CE |
|
|
 |
|
|
