| Product Name： |

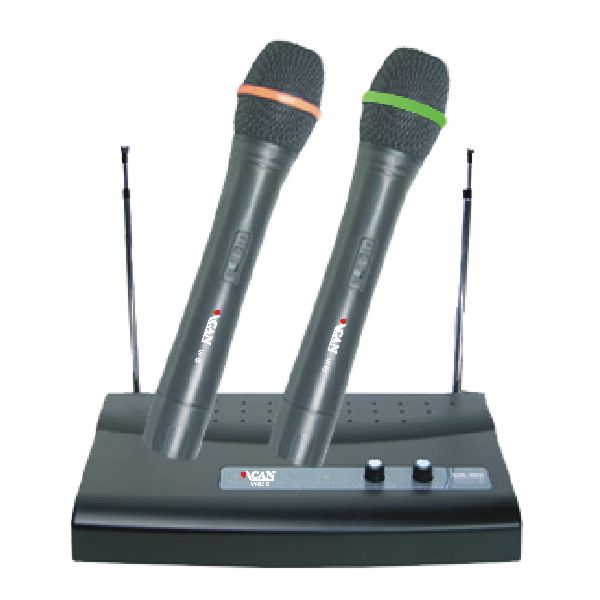

Wireless Microphone |
Item No.： |
W-620 |
|
System
Dynamic Range:≥60dB
System Distortion:≤1%
Signal-to-Noise Ratio:≥60dB
Operating Range:apr.50m
Operating Temperatue Range:5℃-4.5℃
Carrier Frequency Range:160-260 MHz
Transmitter
Frequency Stability:±0.005%
RF Output Power:≤30mW
Spurious Rejection:>40dB
Modulation Mode:FM
Maximum Deviation Range:±75KHz
Microphone Mode：Dynamic(LWM-6188/C/D) Electric Condenser(LWM-6188/C)
Pre-Emphasis:50μS
Power Supply:9V Batt
Current Consumption:<30mA
Dimensions:Ф37X 250mm 90X60X25mm
Weight：Appr.210g(No Batt) Appr.65g(No Batt)
Receiver
Sensitivity(S/N=30dB):<2μV
Image Rejection:>40dB
De-Emphasis:50μS
Audio Output Impedance:600Ω
Audio Output Level:0-0.5V
Power Supply:AC220-240V 50/60Hz
Current Consumption: 1W
Dimensions:420X200X55mm |
|
|
 |
|
